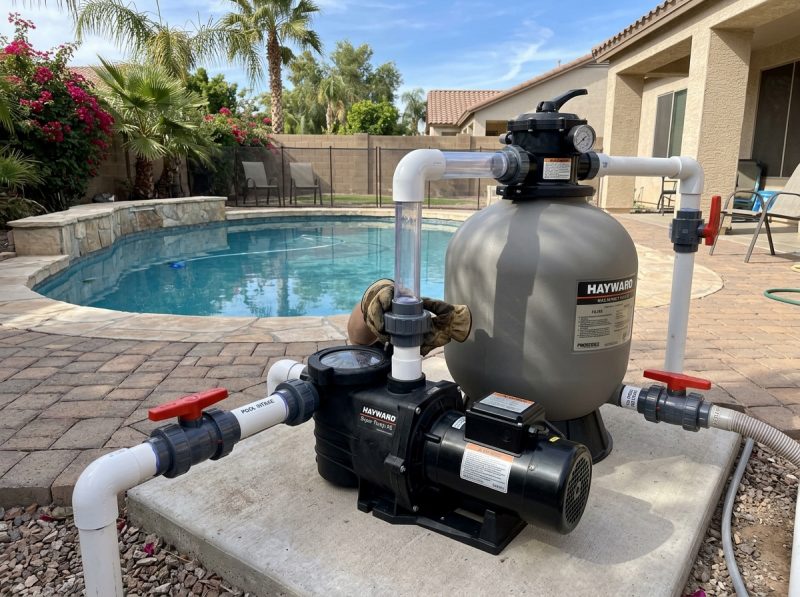

Why Getting Your Hayward Pool Pump Connection Right Matters
Connecting a Hayward pool pump correctly is the difference between a system that runs efficiently for years and one that leaks, loses prime, or trips a breaker on day one. Here’s a quick overview of the process:
- Turn off power at the circuit breaker before you start anything.
- Mount the pump on a level concrete pad with proper clearances.

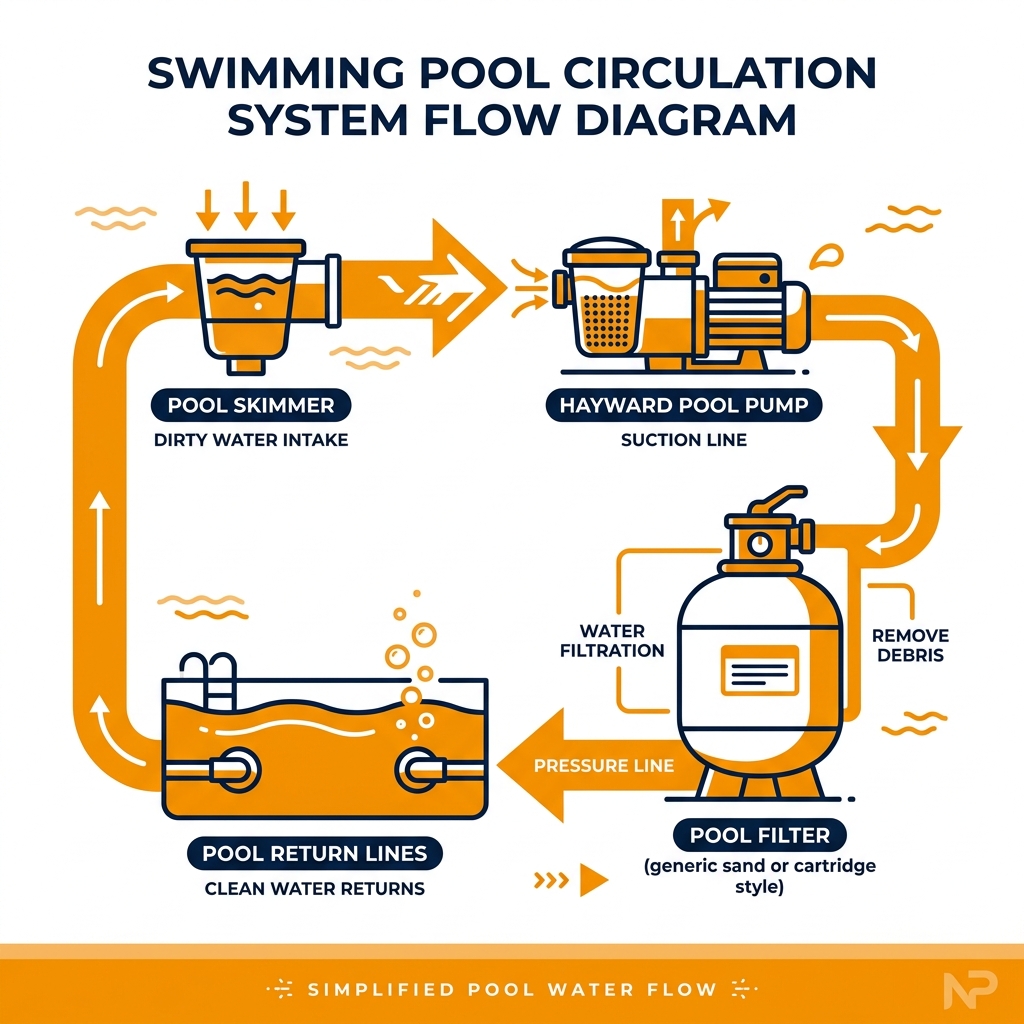

- Plumb the suction line from your skimmer/main drain to the pump inlet.
- Plumb the discharge line from the pump outlet to your filter, then to your returns.
- Seal all threaded fittings with PTFE (Teflon) tape — 1 to 2 layers, wrapped clockwise.
- Wire the pump to the correct voltage (115V or 230V) with proper grounding and bonding.
- Fill the strainer basket with water, then power on and prime the pump.
Get any of these steps wrong and you’re looking at leaks, air locks, poor filtration, or a safety hazard.
Pool pumps are the heart of any circulation system. When they’re hooked up right, your water stays clean, your equipment lasts longer, and your energy bills stay in check. When they’re not — well, problems show up fast.
This guide walks you through every step, from site prep to startup, using Hayward’s own specifications across their TriStar, MaxFlo VS, and Power-Flo pump families.
I’m Lucas Pimenta, General Manager here at Neway Pools, with over 20 years of hands-on experience designing and building custom gunite pools across North Carolina, Florida, Georgia, and Alabama — and connecting Hayward pool pumps to those systems is something our team does on every single build. I’ll share exactly what the manuals say and what actually works in the field.
Pre-Installation Safety and Site Requirements
Before we even touch a piece of PVC or a screwdriver, we have to talk about the “where” and the “how safe.” At Neway Pools, we’ve seen installations in Atlanta and Wilmington where the pump was squeezed into a tight corner with no room to breathe. That is a recipe for a burnt-out motor.
Safety First
Safety isn’t just a buzzword; it’s the law. Before connecting hayward pool pump units, you must ensure the power is off at the main circuit breaker. Use a lockout tag if possible so no one accidentally flips it back on while you’re elbow-deep in wiring. Every Hayward pump requires GFCI (Ground Fault Circuit Interrupter) protection. This is non-negotiable for preventing electrical shock in a wet environment.
Location and Clearances
Whether you are installing a TriStar or a MaxFlo, the pump needs a solid, level home. We recommend a reinforced concrete pad.
- Vertical Clearance: You need at least 72 inches of clear space above the unit. This is especially critical for heat pumps like the HeatPro series, which discharge cold air out the top.
- Side Clearance: Maintain at least 24 inches on all sides. This allows for proper airflow and gives you (or a technician) room to clean the strainer basket or perform maintenance.
- Ventilation: Never install a pump in an enclosed room or under a deck without massive ventilation. The motor generates heat; if that heat can’t escape, the internal thermal protector will shut the pump down—or worse, melt the windings.
For more specific details on your particular model, always refer to the Manuals – Hayward Pool Products.
Essential Tools and Materials
To do the job right, you’ll need a specific kit. Don’t try to “hand-tighten” everything or use the wrong glue.
- Plumbing Tools: Large channel locks or a strap wrench (to avoid scarring the plastic unions), a PVC pipe cutter or hacksaw, and a deburring tool.
- Chemicals: High-quality PVC primer and medium-body PVC glue.
- Sealing: PTFE Teflon tape (more on this later).
- Electrical: No. 8 AWG solid copper wire for bonding, a wire stripper, and a multimeter to verify voltage.
If your existing equipment pad is cracked or sinking, you might need more than just a new pump. Check out our guide on Pool Repairs and Renovations Near Me for advice on prepping the perfect equipment area.
Connecting Hayward Pool Pump Plumbing Lines
Plumbing is where most DIYers run into trouble. If the pipe is too small, the pump “starves” for water (cavitation). If it’s too big… well, there’s no such thing as too big, but there is such a thing as inefficient.
Pipe Sizing and Flow Rates
Hayward pumps like the TriStar are high-efficiency machines. To get the GPM (Gallons Per Minute) they are capable of, you need the right pipe.
| Pipe Diameter | Max Recommended Flow (GPM) |
|---|---|
| 1.5 Inch | 45 GPM |
| 2.0 Inch | 80 GPM |
| 2.5 Inch | 110 GPM |
| 3.0 Inch | 160 GPM |
The 5x Diameter Rule: This is a pro-tip we use at Neway Pools. To ensure “laminar” (smooth) flow into the pump, try to have a straight run of pipe entering the suction port that is at least 5 times the diameter of the pipe. If you’re using 2-inch pipe, try for 10 inches of straight pipe before the first elbow.
Sealing Threaded Connections
When connecting hayward pool pump threads, never use “pipe dope” or silicone. These can chemically react with the plastics and cause the housing to crack over time.
- Use PTFE (Teflon) tape.
- Wrap it clockwise (the same direction you turn the fitting to tighten it).
- Apply only 1 to 2 layers.
- Tighten by hand, then give it exactly 1.5 turns with a wrench. Over-tightening is the number one cause of cracked pump housings in places like Pensacola and Milton.
If you’ve already dealt with cracks or leaks in your pool structure or plumbing, you know how frustrating it is. We often help clients with Pebblecrete Pool Repairs that started with simple plumbing leaks that washed away the soil under the pool.
Utilizing Hayward Union Kits
If you want to make your life easier, use Hayward Union Kits (like the SPX3200UNKIT). These allow you to disconnect the pump for winterization or repair without cutting the pipes. These kits are self-aligning and compatible with Northstar, EcoStar, and TriStar series. You can find more parts support at the Support Center – Hayward Pool Products.
Electrical Wiring, Grounding, and Bonding
Let’s be very clear: electricity and water are a lethal combination. While we can provide the steps, we always recommend hiring a licensed electrician to finalize your connections.
Voltage Requirements
Most Hayward in-ground pumps (like the MaxFlo VS) run on 230V, while some above-ground models use 115V.
- 230V Setup: You will have two “hot” lines (L1 and L2) and a ground.
- 115V Setup: You will have one “hot” line, one neutral, and a ground. Check the nameplate on the motor. Wiring a 115V motor to a 230V circuit will result in a very expensive puff of smoke.
Grounding vs. Bonding
These are two different things, and you need both.
- Grounding: This is the green wire inside the conduit that goes to the internal ground lug. It protects you if there is a short inside the motor.
- Bonding: This is a bare No. 8 AWG solid copper wire that attaches to the external bonding lug on the outside of the motor. This wire connects all metal parts of the pool (ladder, light niches, pump) together to ensure they all have the same electrical potential, preventing “stray voltage” shocks.
Connecting Hayward Pool Pump to Automation Systems
If you’re using the Hayward OmniHub system, the wiring gets a bit more modern. Instead of just a power toggle, you’ll use an RS485 communication cable (a 4-wire low-voltage cable). This allows the OmniHub to tell the pump exactly what RPM to run at.
When we design a Pool Surround Repairs for a Perfect Patio, we often integrate these “smart” features so homeowners can control their pumps from their phones while sitting on their new travertine deck in Alpharetta or Johns Creek.
Step-by-Step Installation for Specific Models
Hayward makes different pumps for different pools. Connecting hayward pool pump lines for a small above-ground pool is a different beast than a 50,000-gallon gunite masterpiece.
Connecting Hayward Pool Pump for Above-Ground Pools
The Power-Flo LX and Power-Flo II series are the workhorses of the above-ground world.
- Flooded Suction: These pumps are usually not self-priming, meaning they must be installed below the water line. Gravity pushes the water into the pump.
- Hose Connections: Instead of rigid PVC, these often use 1.5-inch reinforced hoses with hose clamps. Ensure the clamps are stainless steel to prevent rusting.
If you’re wondering if your current setup is right for your spa or small pool, check out our tips on How to Choose the Right Spa Pool Repairs Near Me.

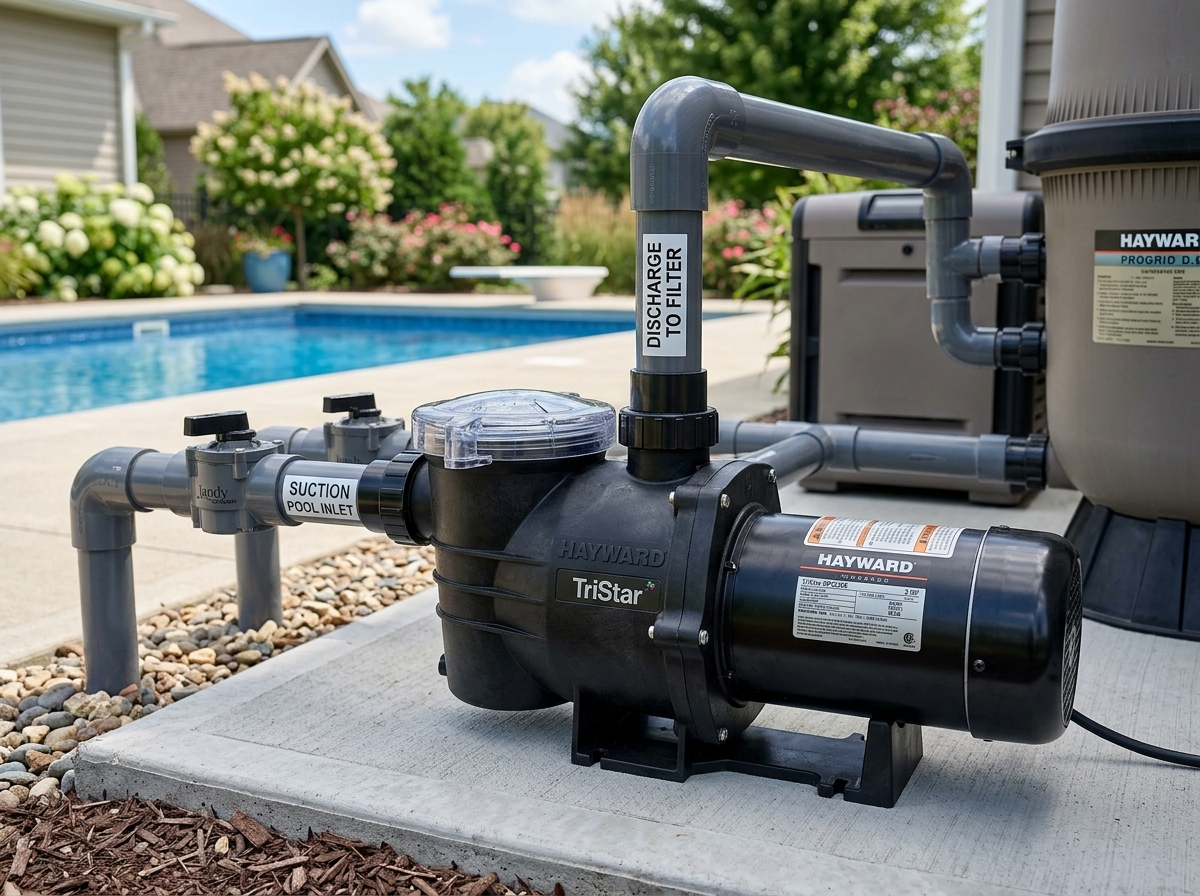

Connecting Hayward Pool Pump for In-Ground Systems
The TriStar and MaxFlo VS are self-priming. This means they can be installed up to 10 feet above the water level.
- Rigid PVC: Always use Schedule 40 rigid PVC for in-ground systems.
- Vibration: Secure the pump to the pad with stainless steel bolts and use a rubber vibration dampening mat if the noise is a concern in quiet neighborhoods like Milton or Sandy Springs.
You can see the full range of what we install on our Services page.
Priming and Initial Startup Procedures
Never, ever run your pump dry. The shaft seal depends on water for lubrication and cooling. Running it dry for even 60 seconds can melt the seal.
- Open the Lid: Unscrew the strainer cover.
- Fill the Housing: Use a garden hose to fill the pump basket housing to the very top.
- Check the O-Ring: Ensure the lid O-ring is clean and lubricated with a non-petroleum-based lubricant.
- Seal the Lid: Tighten the lid (hand-tight is usually enough for the Tri-Lock cam design).
- Open Valves: Make sure the suction and return valves are open.
- Release Air: Open the air relief valve on top of your filter.
- Power On: Flip the breaker. The pump may take up to 10 minutes to fully prime if it’s high above the water level. Once a steady stream of water shoots out of the filter air relief valve, close it.
Troubleshooting and Winterization
Even the best-connected pump can have a bad day. Here’s what we look for when we get service calls in Panama City or Gulf Breeze.
Common Connection Issues
- Air Bubbles in Basket: This is almost always a “suction side” leak. Check the pump lid O-ring first. If that’s fine, check the threaded fitting entering the front of the pump.
- Low Flow: Check the strainer basket for debris. If it’s clean, your filter might need backwashing or a cartridge cleaning.
- Unusual Noises: A high-pitched screech usually means the bearings are shot (often due to a leaking shaft seal). A “rocks in a blender” sound usually means cavitation—the pump is trying to move more water than the pipes allow.
Winterization
In our North Carolina locations like Wilmington or Oak Island, freezing is a real threat.
- Drain the Pump: Remove the two drain plugs at the bottom of the pump housing.
- Store the Plugs: Put the plugs in the pump basket so you don’t lose them!
- Blow Out Lines: Use a shop vac or air compressor to blow water out of the plumbing lines.
- Cover: Cover the motor with a breathable tarp to keep the snow off, but don’t wrap it air-tight, or moisture will build up and rust the internals.
Frequently Asked Questions about Hayward Pumps
How long should it take for my Hayward pump to prime?
For most in-ground pools, it should take 2 to 5 minutes. Hayward variable speed pumps have a “priming mode” that runs at high RPM for a set duration (usually 8 minutes by default) to ensure all air is purged. If it takes longer than 10 minutes, you likely have a suction-side air leak.
What size PVC pipe is best for a Hayward TriStar pump?
While they can work with 1.5-inch pipe, we highly recommend 2-inch or 2.5-inch plumbing. The TriStar is a high-flow pump; using 1.5-inch pipe is like trying to breathe through a straw while running a marathon.
Can I install a variable speed Hayward pump myself?
If you are comfortable with PVC plumbing and have a basic understanding of electrical safety, you can do the physical installation. However, because of the complex bonding and GFCI requirements—and to ensure your warranty remains valid—we always recommend having a pro handle the final electrical hookup.
